🛠 How to Build a French Cleat Tool Storage Wall: Step-by-Step Guide

Introduction

If your bench is buried under tools and you’re always searching for the right screwdriver, this guide is for you. A French cleat tool storage wall transforms wasted wall space into an organized, modular system that grows with your workshop.

🔎 What Is a French Cleat?

A French cleat is a simple but genius method of hanging storage. By cutting a board at a 45° angle, you create two interlocking pieces: one fixed to the wall, and one attached to a holder. This lets you hang, move, and reconfigure tool holders with ease — no new screws, no headaches.

Why makers love it:

• Ultra-strong (when anchored into studs)
• Completely modular — swap holders in seconds
• Budget-friendly and DIY-ready

---

📋 Materials & Tools for Building a French Cleat Wall

Supplies:

• 18 mm (¾″) x 100mm (4″) pine for cleats. Some people prefer to use 18mm plywood, but this works out rather expensive.
• 6mm (1/4″) or 12 mm (½″) plywood for holders. Personally, I use 6mm for nearly all my cleats, unless I’m making heavy duty holders.
• Screws (80mm (2½″) recommended)
• Some spacers to create consistant spacings

Tools:

• Table saw or circular saw
• Drill/driver
• Stud finder
• Tape measure & pencil
• Level
• Sandpaper

---

Build Your First Clean Wall This Weekend

Cut, build, and start organizing in a single afternoon, with this starter bundle.

---

---

---

🗺 Plan Your Layout

• Decide how wide and tall your cleat wall will be.
• Mark stud locations on the wall.
• Always start from the top down — this ensures consistent spacing and maximum use of your wall.

💡 Pro Tip: Install your top cleat at about 1,950 mm (6′5″) from the floor. That’s a comfortable reach for most people.

---

✂ Cutting & Preparing the Cleats

1. Set your saw to 45° and bevel each pine strip lengthwise, down the middle.
2. Then set the saw to vertical again and run the beveled strips through again, shaving off a little material so they are all the same width.
3. Sand edges smooth.
4. (Optional) Apply finish before installation to reduce warping.

🎥 Watch the Build in Action

If you’d rather see the process step by step, here’s my video walkthrough on how to build a French cleat tool storage wall. In it, I cut and prepare the wall cleats, show you the installation method, and share tips for getting consistent spacing. Watching it in action will give you a clear picture before you start your own build.

🔨 What you’ll see in this video
0:00 Intro & why I don’t use plywood
0:36 Wood selection & thickness tips
4:07 No fancy formulas
4:58 Cutting the cleats
6:22 The dreaded snipe
7:57 Final cuts
8:54 Setting out
9:40 Installation tips
17:05 Mock up for spacings

---

🔩 Installing the Cleats

1. Secure the top cleat into studs with screws.
2. Hang your spacers from this cleat (this is a two person job).
3. Position the next cleat against the spacer and screw into studs.
4. Repeat until you reach the bottom of your wall.

✅ Consistent spacing = smooth tool holder swaps.

These are the spacers that I use. I cut these out using a laser cutter, but you could make something similar.

Click on the image to buy the plans for these spacers

---

🔨 How to Build French Cleat Tool Holders

Now the fun part… The beauty of French cleats is making holders that fit your tools:
Here are a few of the tool holders that I’ve created…

To begin with, I created my tool holders out of 12mm scrap plywood that I had in the workshop (in hindsight, these were overbuilt).

I then bought a laser cutter and started designing better-looking, modular tool holders. Click on any image to see more details.

• Small hand tools: screwdriver racks, drill hangers, bit bins.

• Large gear: clamp racks, sander cradles, saw shelves.

• Consumables: small boxes and shelves for glue, masking tape, batteries, etc.

Each holder just needs a plywood back cut at 45° to hook into the wall cleats.

✨ Summary: The Joy of Building Tool Holders

Designing and building your own French cleat tool holders is one of the most rewarding parts of this project. It’s a chance to get creative, solve storage problems in ways that fit your workflow, and make holders as simple or as complex as you like. From basic shelves and hooks to custom racks and bins, you’re only limited by your imagination. The best part? Every holder you add makes your wall more functional, more personalized, and more satisfying to use.

---

🎨 Customizing & Finishing Touches

• Label each row for fast reorganization.
• Paint or seal your cleats for a polished shop look.

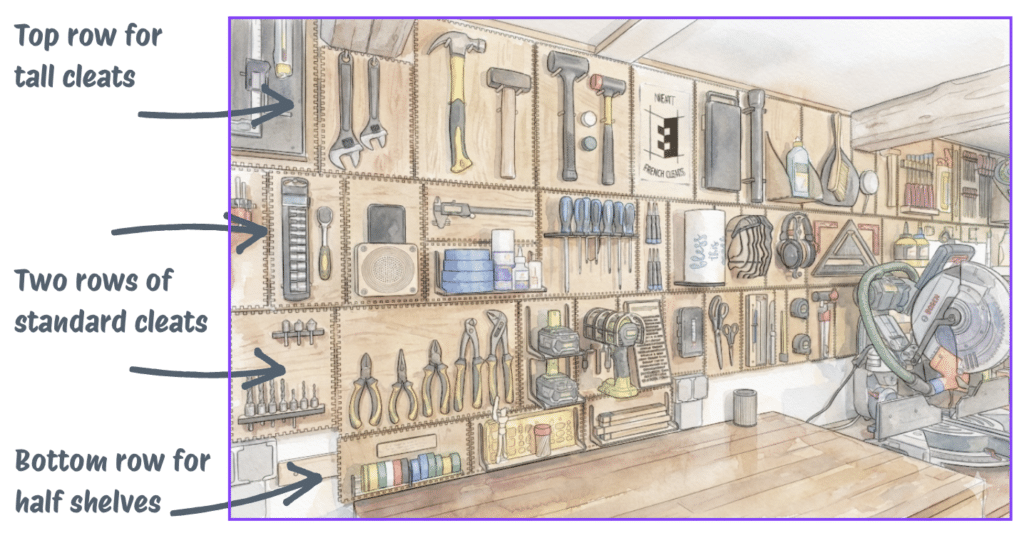

• Create “zones”: 5″ spacing for hand tools, 8″ for bulky gear.

---

🚫 Avoid These 5 Common French Cleat Mistakes

Even the best DIY setups can go wrong if you miss a detail. In this video, I walk through the five most common mistakes people make when building a French cleat tool storage wall — and, more importantly, how to avoid them. From material choices to installation missteps, these tips will save you time, frustration, and wasted plywood.

---

🔧 5 Clever French Cleat Hacks for Your Workshop

Once you’ve built your wall, the real fun begins. In this video, I share five French cleat hacks that take your tool storage system to the next level. These are quick, practical ideas you can use right away to add more functionality, save space, and make your workshop even more efficient.

---

🔄 Maintenance & Reconfiguration

As your tool collection grows, so can your wall. Just add more cleats, or shift holders around to fit your workflow. No more wasted time hunting for tools.

---

📸 Before & After

Before installing a French cleat wall, tools are often scattered across benches, tucked into drawers, or stacked in piles that waste precious time. Afterward, everything has a dedicated spot — neat, modular, and always within reach. The transformation isn’t just about storage, it’s about working in a cleaner, faster, and more enjoyable workshop.

Imagine the difference: from cluttered bench to a sharp, professional-looking tool wall. Share your transformation with us at #NeatFrenchCleatSetup — we love seeing maker walls in action.

---

Build Your First Clean Wall This Weekend

Cut, build, and start organizing in a single afternoon, with this starter bundle.

---

---

❓ FAQs

---

✅ Key Takeaways

• Start by installing the top cleat at ~1,950 mm height.
• Build holders for your tools — the system grows with you.

---
